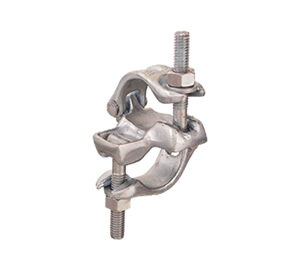

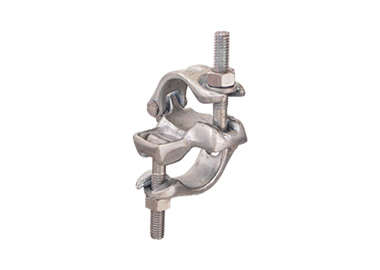

Drop Forged Double Coupler – Right Angle
Used for connection of 2 tubes (48.3) at right angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron SteelFor 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

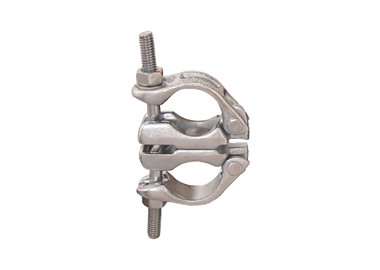

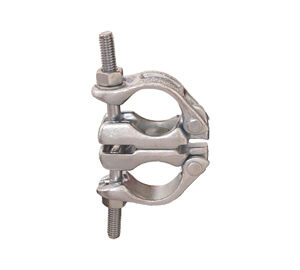

Drop Forged Swivel Coupler
Used for connection of 2 tubes (48.3) at any angle
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

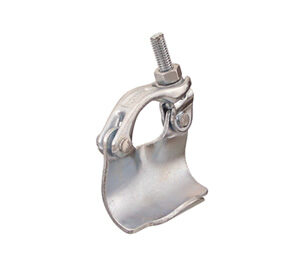

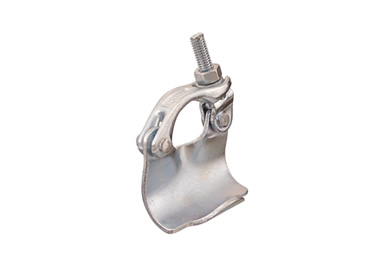

Drop Forged Single Coupler (Put Log)
Used for connection of putlogs & transoms to ledgers
Nut Size – 1/2″ BSW x 21mm AF
Half Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1250 Pcs/Pallet

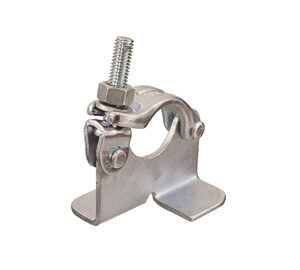

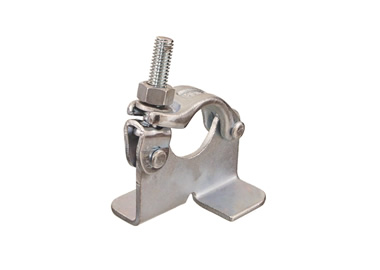

Drop Forged Board Retaining Coupler
Used for quickly & securely locking the boards in correct positions
Nut Size – 1/2″ BSW x 21mm AF
Half Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1250 Pcs/Pallet

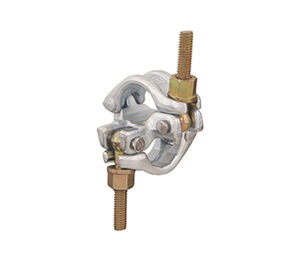

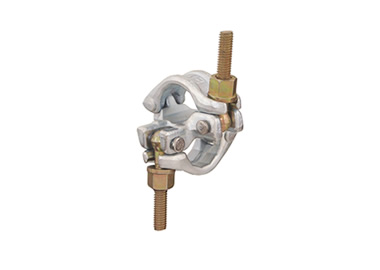

Drop Forged Dual Coupler (American) – Right Angle
Used for connection of 2 tubes at right angles
Flange Nut – 1/2″ BSW Thread x 22 mm AF available
Eye Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 / 42.0 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Heavy Duty Double Coupler (American)
Used for connection of 2 tubes at right angles
Wide Cap (American)
Flange Nut – 1/2″ BSW Thread x 22 mm AF available
Eye Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 / 42.0 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Heavy Duty Sviwel Coupler (American)
Used for connection of 2 tubes at any angle
Wide Cap (American)
Flange Nut – 1/2″ BSW Thread x 22 mm AF available
Eye Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 / 42.0 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Dual Coupler (Australian) – Right Angle
Used for connection of 2 tubes at right angles
Flange Nut – 1/2″ BSW Thread x 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

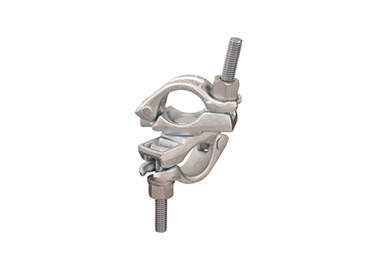

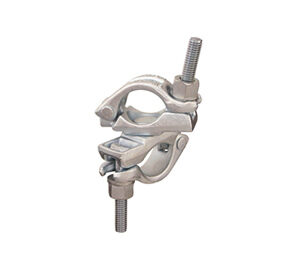

Drop Forged Dual Coupler (Australian) – Swivel
Used for connection of 2 tubes at any angle
Flange Nut – 1/2″ BSW Thread x 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Beam Clamp – Fixed
Used for connection of 2 tubes at any angle
Flange Nut – 1/2″ BSW Thread x 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 51.0 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

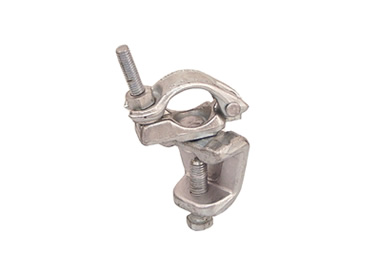

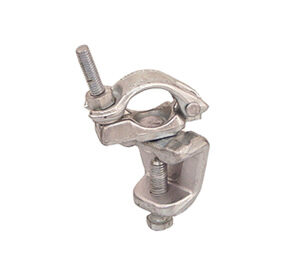

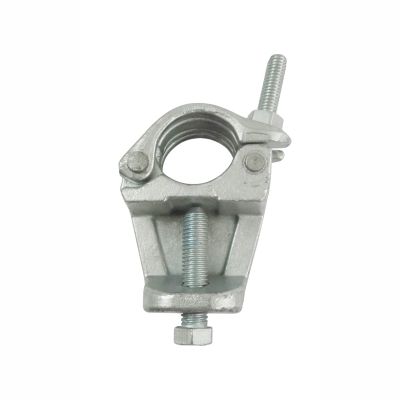

Drop Forged Beam Clamp – Swivel
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Flange Nut sizes – 22 / 23mm AF
Tee Bolt – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
Hex Bolt – 5/8″ x 76mm (Mild Steel) Head 21mm AF
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 20 Pcs/Bag, 800 Pcs/Pallet

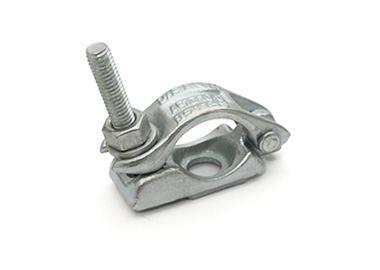

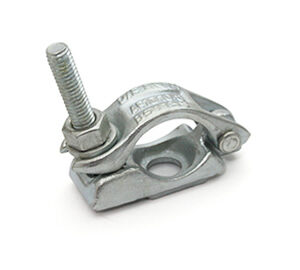

Drop Forged Half Coupler
Versatile range of half couplers for a variety of application requiring the clamping of a single tube
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Available Flange Nut sizes – 22 / 23mm AF
Tee Bolt – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 2000 Pcs/Pallet

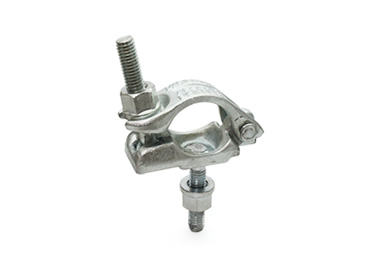

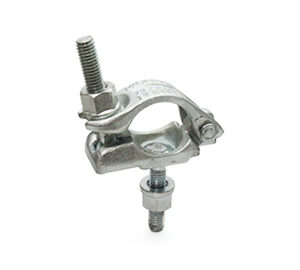

Drop Forged Half Coupler (with Toggle Bolt)
Versatile range of half couplers for a variety of application requiring the clamping of a single tube
Tee Bolts – M14 Thread, Available in Mild Steel or Boron Steel
Flange Nut Size – M14 thread x 22mm AF
Toggle Size – M14 thread x 65mm
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 2000 Pcs/Pallet

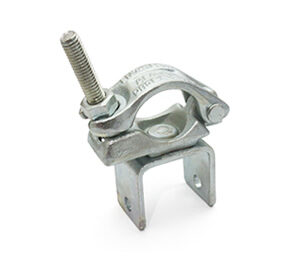

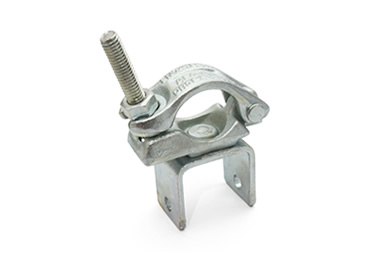

Drop Forged Half Coupler (with U Bracket)
Versatile range of half couplers for a variety of application requiring the clamping of a single tube
Nut Size – 1/2″ BSW Thread x 21mm AF
Bracket Size – 50mm Tube
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1500 Pcs/Pallet

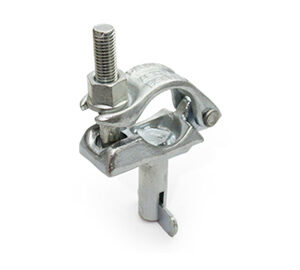

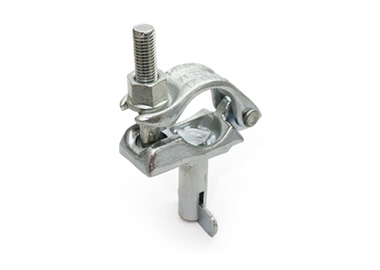

Drop Forged Half Coupler (with Toggle Pin)
Versatile range of half couplers for a variety of application requiring the clamping of a single tube
Flange Nut Size – M14 Thread x 22mm AF
Tee Bolts – M14 Thread, Available in Mild Steel or Boron Steel
Toggle Pin – 55mm x16mm
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1500 Pcs/Pallet

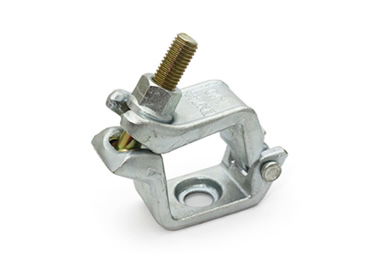

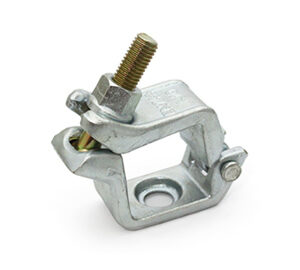

Drop Forged Square Half Coupler
Versatile range of half couplers for a variety of application requiring the clamping of a single tube
Flange Nut Size – M14 Thread x 22mm AF
Tee Bolts – M14 thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1500 Pcs/Pallet

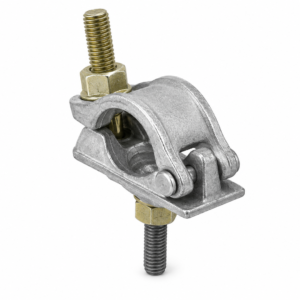

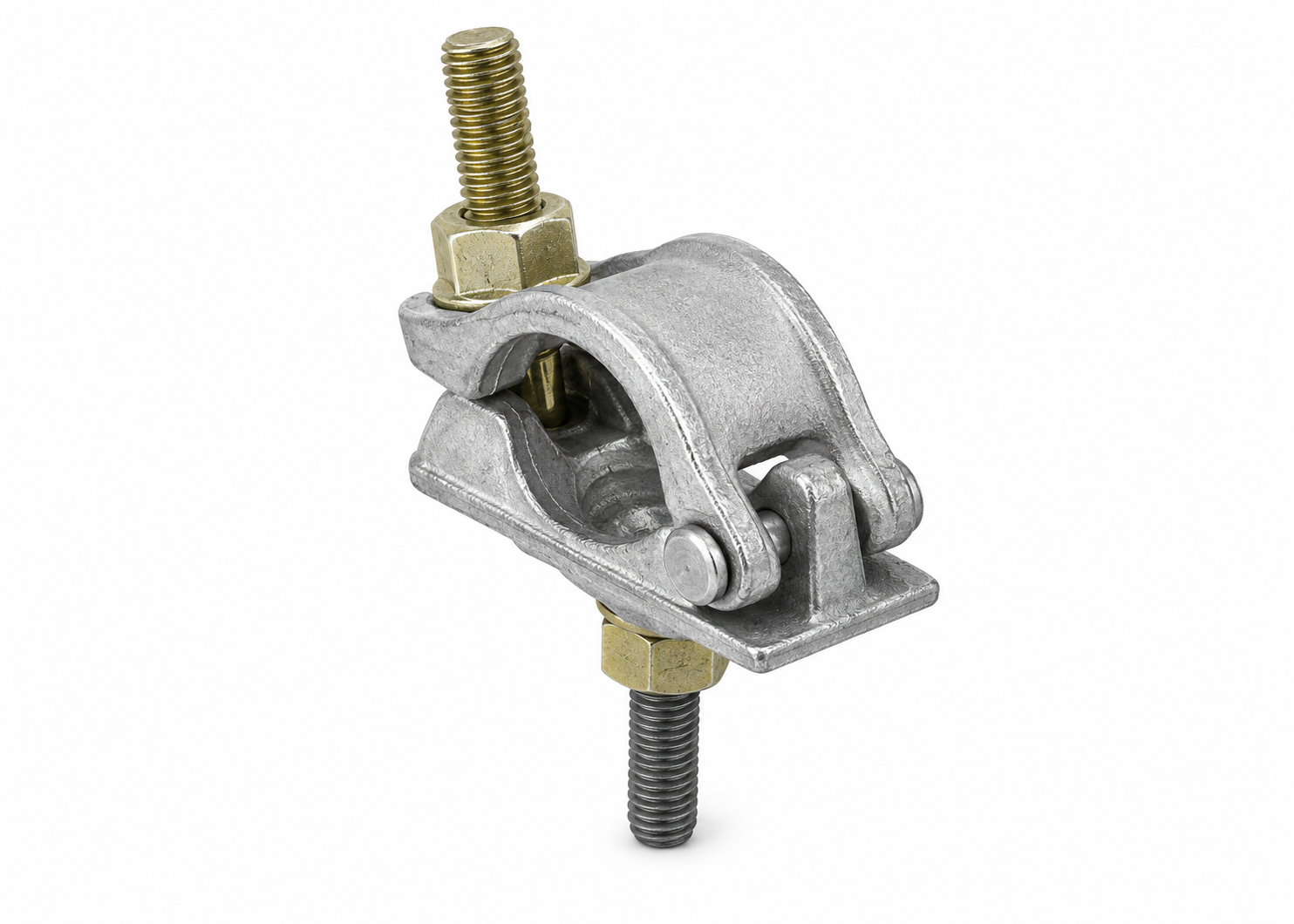

Drop Forged Half Coupler with bolt, EU Model
Half couplers for a variety of application requiring the clamping of a single tube
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 40 Pcs/Bag, 2000 Pcs/Pallet

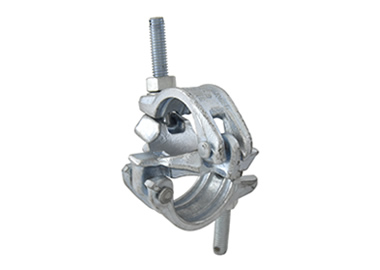

Drop Forged RAC Coupler, 48x60mm
Used for connection of 2 tubes at right angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
Finish – Electro Zinc Plated
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

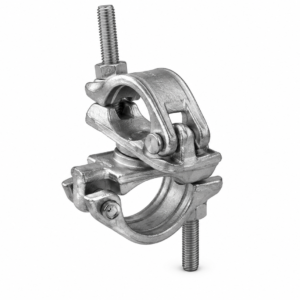

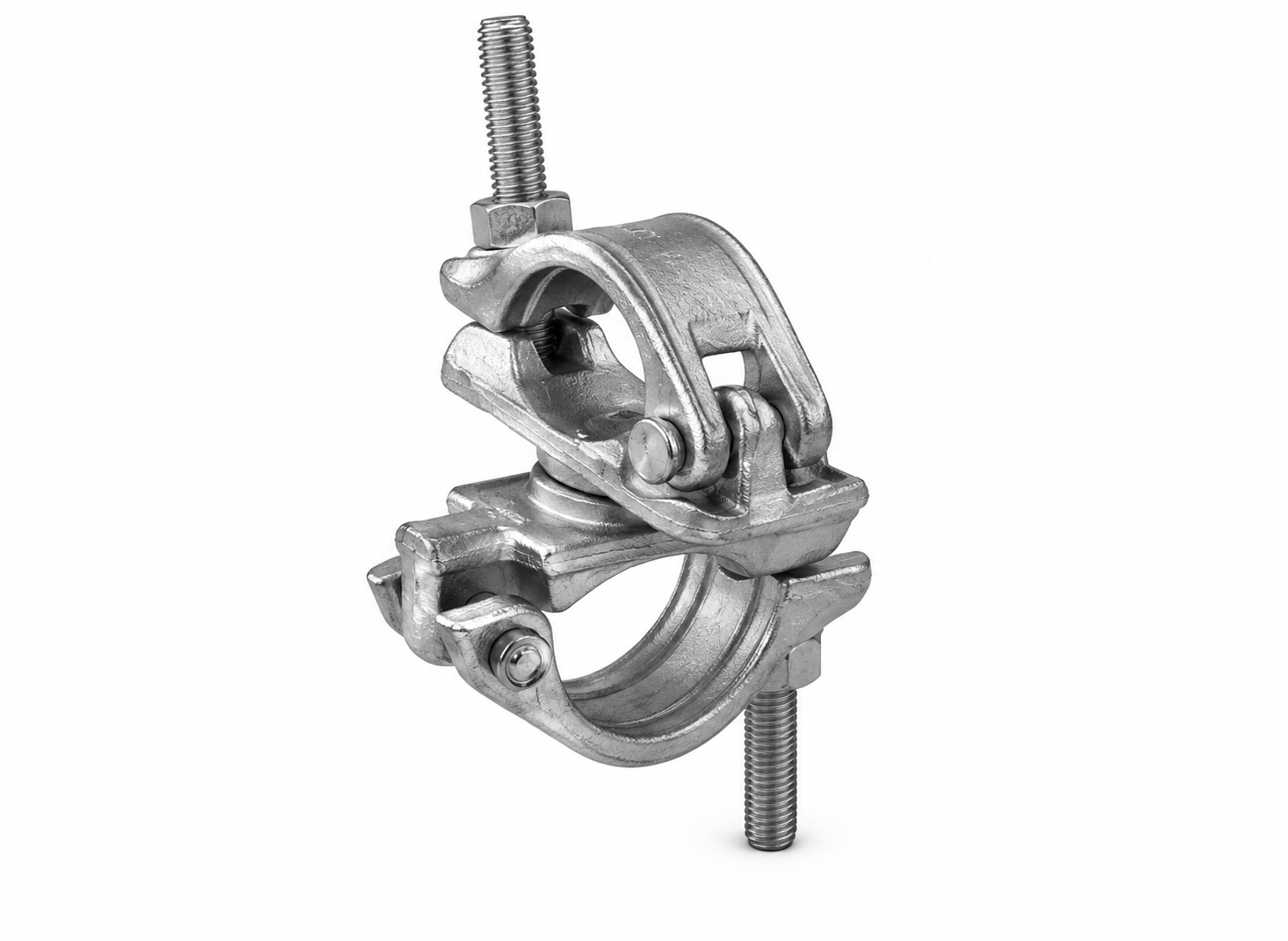

Drop Forged Swivel Coupler, 48x60mm
Used for connection of 2 tubes at any angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
Finish – Electro Zinc Plated
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Palle

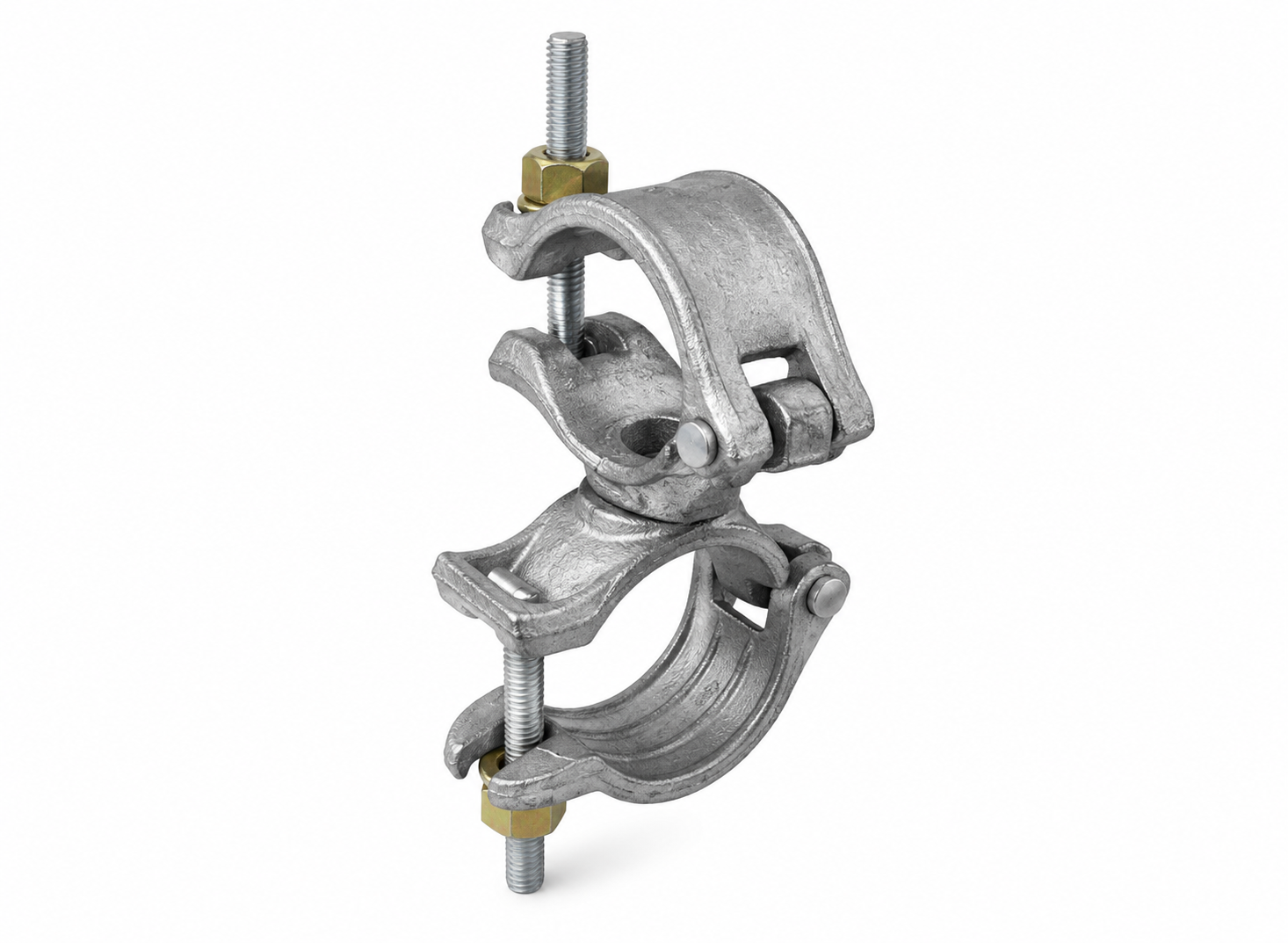

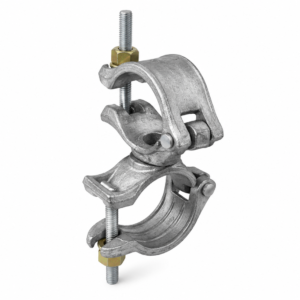

Drop Forged RAC Coupler, 76x76mm
Used for connection of 2 tubes at any angles
Flange Nut 22 mm
Tee Bolts – Bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

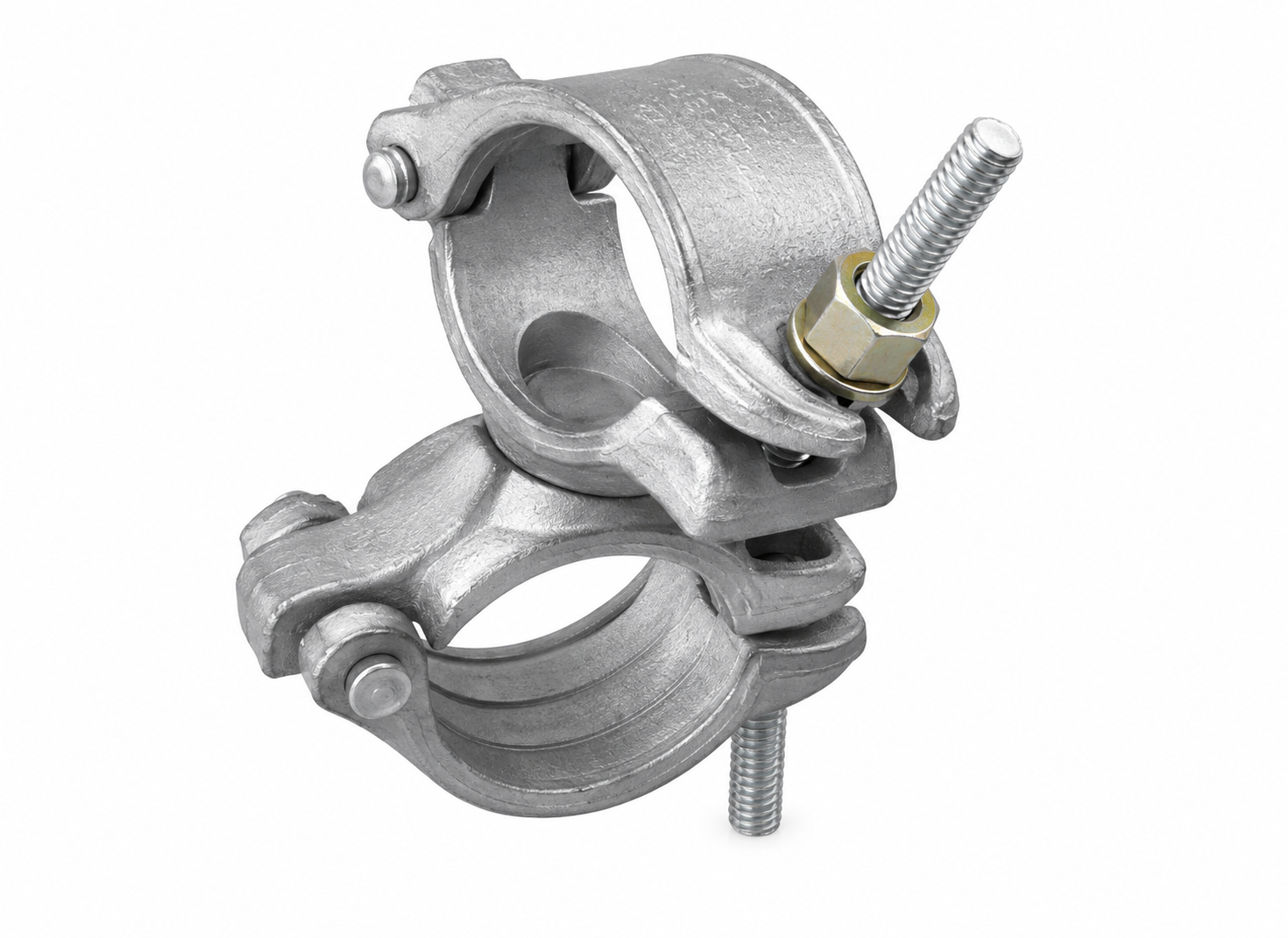

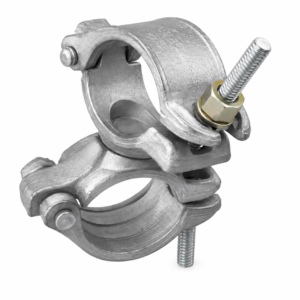

Drop Forged Swivel Coupler, 76x76mm
Used for connection of 2 tubes at any angle
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

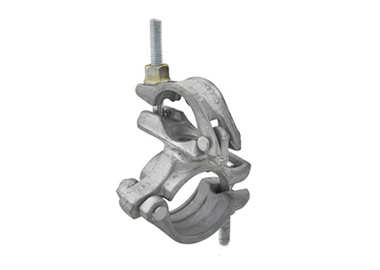

Drop Forged RAC Coupler, 76x60mm
Used for connection of 2 tubes at right angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Swivel Coupler, 76x60mm
Used for connection of 2 tubes at Any Angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet
