Drop Forged Double Coupler 34x34mm
Used for connection of 34mm tube dia
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Drop Forged Lapper Coupler
Flange Nut 22 mm
Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized / Zinc Plated
Pressed Double Coupler – Right Angle (5 mm)
Used for connection of 2 tubes at right angles
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

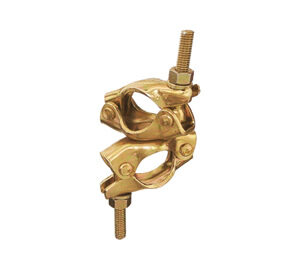

Pressed Double Coupler – Swivel (5 mm)
Used for connection of 2 tubes at any angle
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

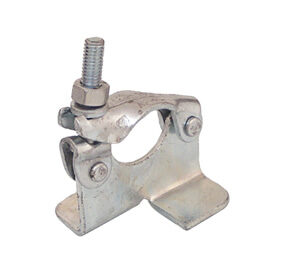

Pressed Board Retaining Coupler (5 mm)
Used for quickly & securely locking the boards in correct position
Nut Size – 1/2″ BSW Thread x 21mm AF
Half Tee Bolts – 1/2″ BSW thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1250 Pcs/Pallet

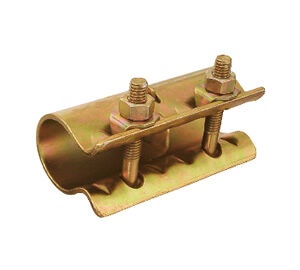

Pressed Sleeve Coupler (4 mm)
Used for external connection of two tubes end-to-end. Provides a more secure joint
Nut Size – 1/2″ BSW Thread x 21mm AF
Tee Bolts – 1/2″ BSW thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

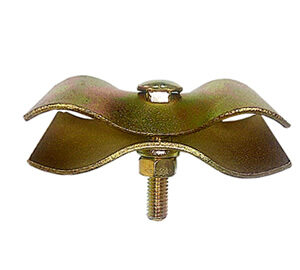

Pressed Parallel / Fence Coupler (2.5 mm)
Used for clamping 2 standard Scaffold tubes in parallel
Nut Size – 1/2″ BSW Thread x 21mm AF
Bolt – 1/2″ BSW x 80mm Length, available in Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 2000 Pcs/Pallet

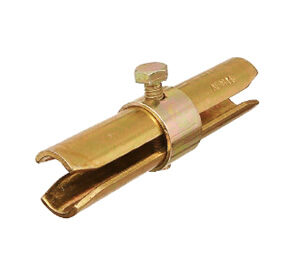

Pressed Joint Pin Coupler-(2.5 mm)
Used for the internal connection of 2 tubes end-to-end
Hex Bolts – 75mm Length, Head size 21mm AF, Available in Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

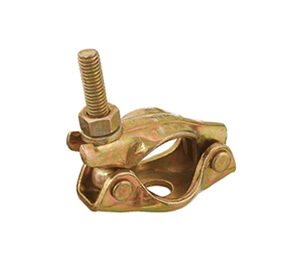

Pressed Half Coupler (5 mm)
Versatile range of half couplers for a variety of applications requiring the clamping of a single tube
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Hole Size – 16mm
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 2000 Pcs/Pallet

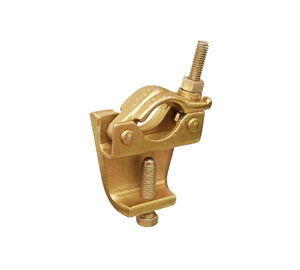

Pressed Grave Loc Coupler (Girder Clamp)
Nut size – 1/2″ BSW x 21mm AF
Hex Bolt – 5/8″ x 76mm (Mild Steel)
Eye Bolt Size – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 20 Pcs/Bag, 800 Pcs/Pallet

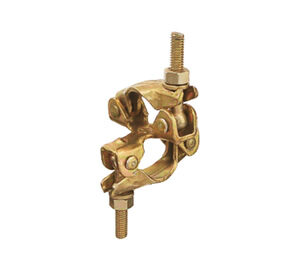

Pressed Ladder Clamp, Zinc Plated
Casted Fly Nut Size – M12 Thread
Bolt – Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag,1000 Pcs/Pallet
Pressed Toe Board Clamp
Nut Size – 1/2″ BSW x 20.5 mm AF
Bolt – 1/2″ BSW Thread, available in Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag,1000 Pcs/Pallet

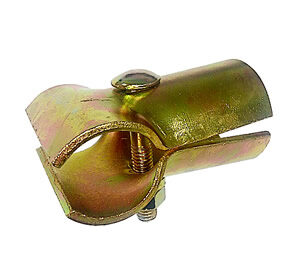

Pressed Finial Double Clamp
Nut Size – 1/2″ BSW Thread x 20.5mm
Cap Bolt Size – 1/2″ BSW x 90mm, Available in Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

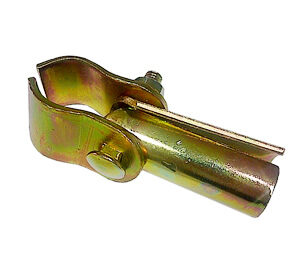

Pressed Finial Swivel Clamp
Nut Size – 1/2″ BSW Thread x 20.5mm
Cap Bolt Size – 1/2″ BSW x 80mm, Available in Mild Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

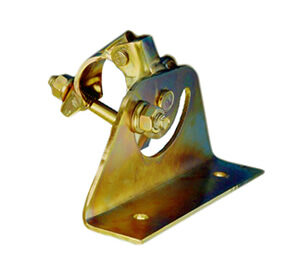

Pressed Stair Thread Clamp
Conform to BS EN 1139 : Section 2.2.1991
Used in Pairs
Connecting Timber treads to 48.3mm Scaffold Tubes
Adjustable from 28 to 90 Degrees
Finish – Silver or Gold Zinc Plated

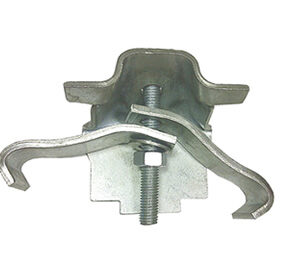

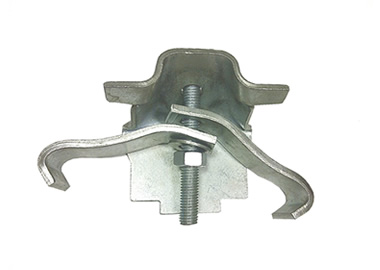

Pressed Timber Beam Clamp
Carriage Bolt – Mild Steel
Conform to BS EN 1139 : Section 2.2.1991
Used in Pairs
Finish – Zinc Plated
H20 Timber Beam Clamp – Single
Pressed Steel
Used In Pairs
Carriage Bolt – 5.6 Grade / 8.8 Grade
Finish – Electro Zinc Plated
Adapt to H20 Timber Beam and Steel Walling as
Connection and Fix Function
Pressed Double Coupler – Right Angle (5 mm) 48X60 MM
Used for connection of 2 tubes at right angles
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

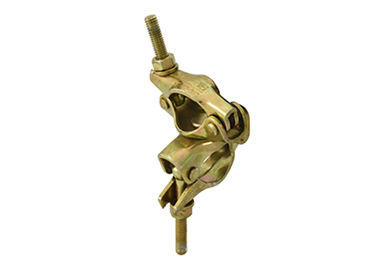

Pressed Swivel Coupler – (5 mm) 48X60 MM
Used for connection of 2 tubes at any angles
Nut Size – 1/2″ BSW Thread x 21mm AF
Available Nut sizes – 22 / 23mm AF
Tee Bolts – 1/2″ BSW Thread, Available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet
Pressed Fence Coupler
Size : 42 mm
Heavy 2mm Thickness
Finish – Hot Dip Glavanized / Electro Zinc Plated
Packing : 50 pcs / bags,

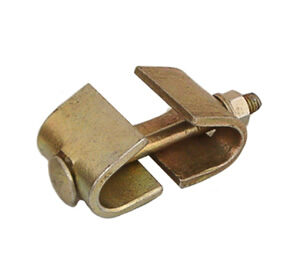

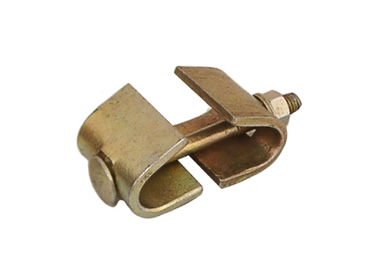

Pressed Universal Clamp
Ideal for Formwork Applications
Bolt Size – 130mm Length x Thread 1/2″ BSW, Available in Mild Steel
Nut size – 1/2″ BSW x 21mm AF
Finish – Zinc Plated
Std. Packing – 50 Pcs/Bag, 1000 Pcs/Pallet
