Drop Forged RAC Coupler, 76x48mm
Used for connection of 2 tubes at right angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

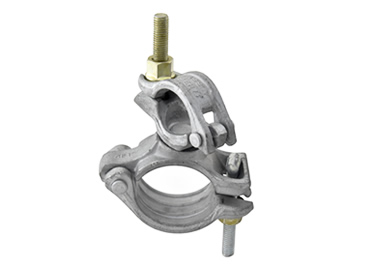

Drop Forged Swivel Coupler, 76x48mm
Used for connection of 2 tubes at right angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged RAC Coupler, 60x60mm
Used for connection of 2 tubes at right angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

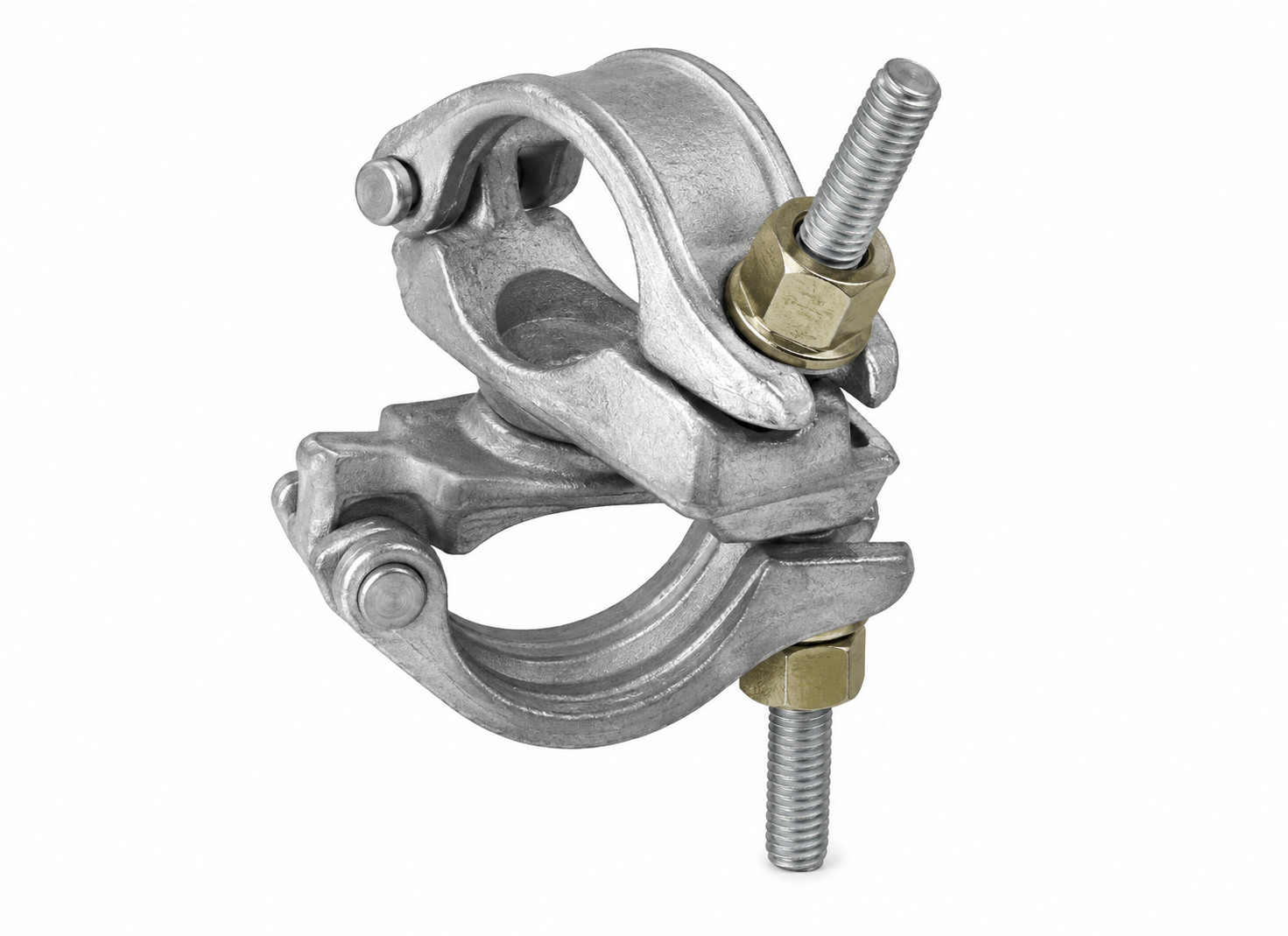

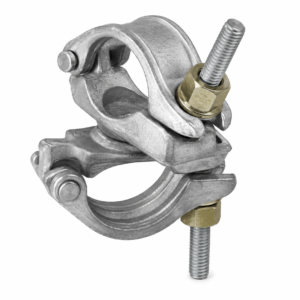

Drop Forged Swivel Coupler, 60x60mm
Used for connection of 2 tubes at any angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

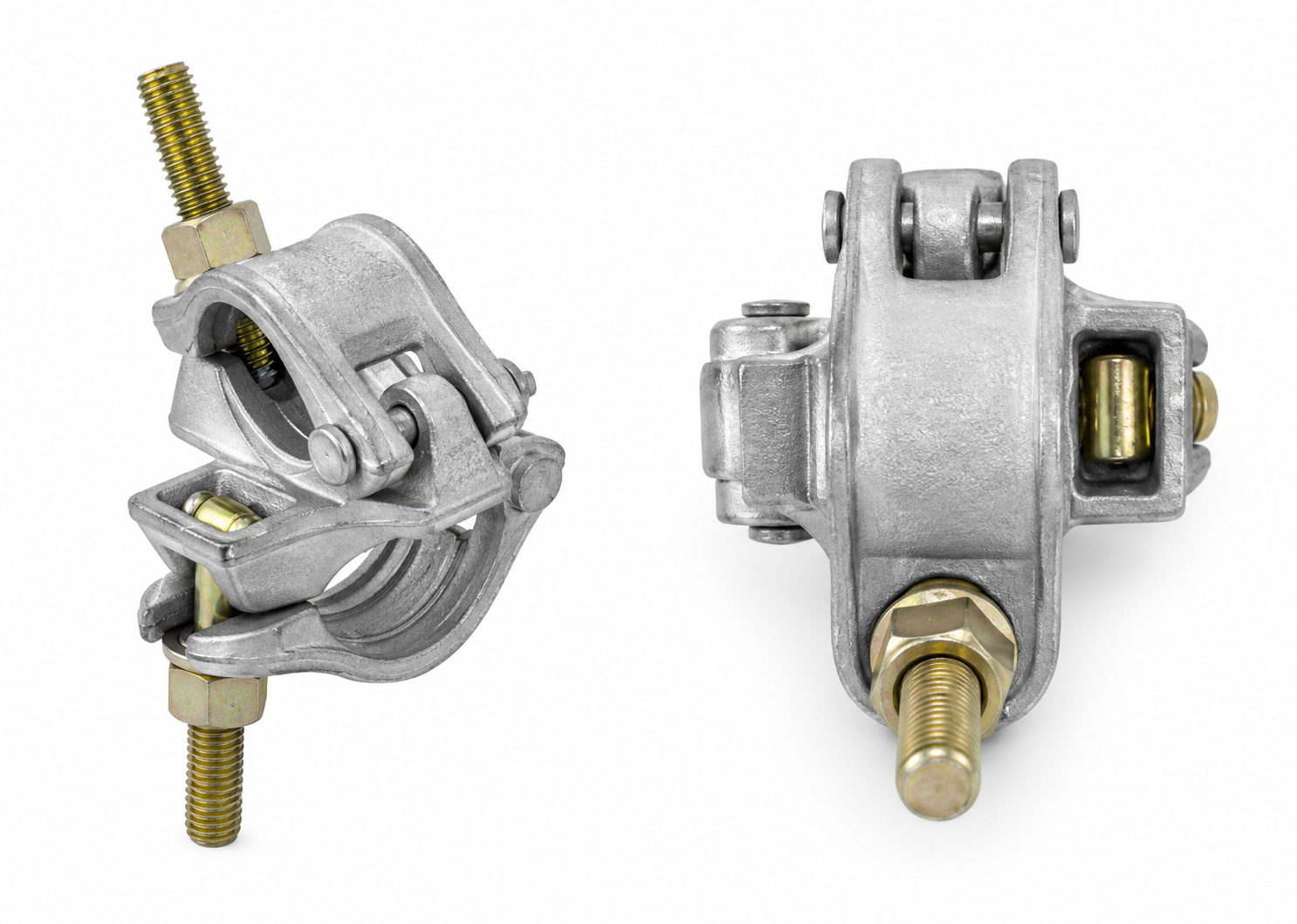

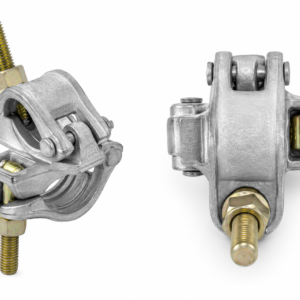

Drop Forged RAC Coupler, EU Model
Used for connection of 2 tubes at right angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

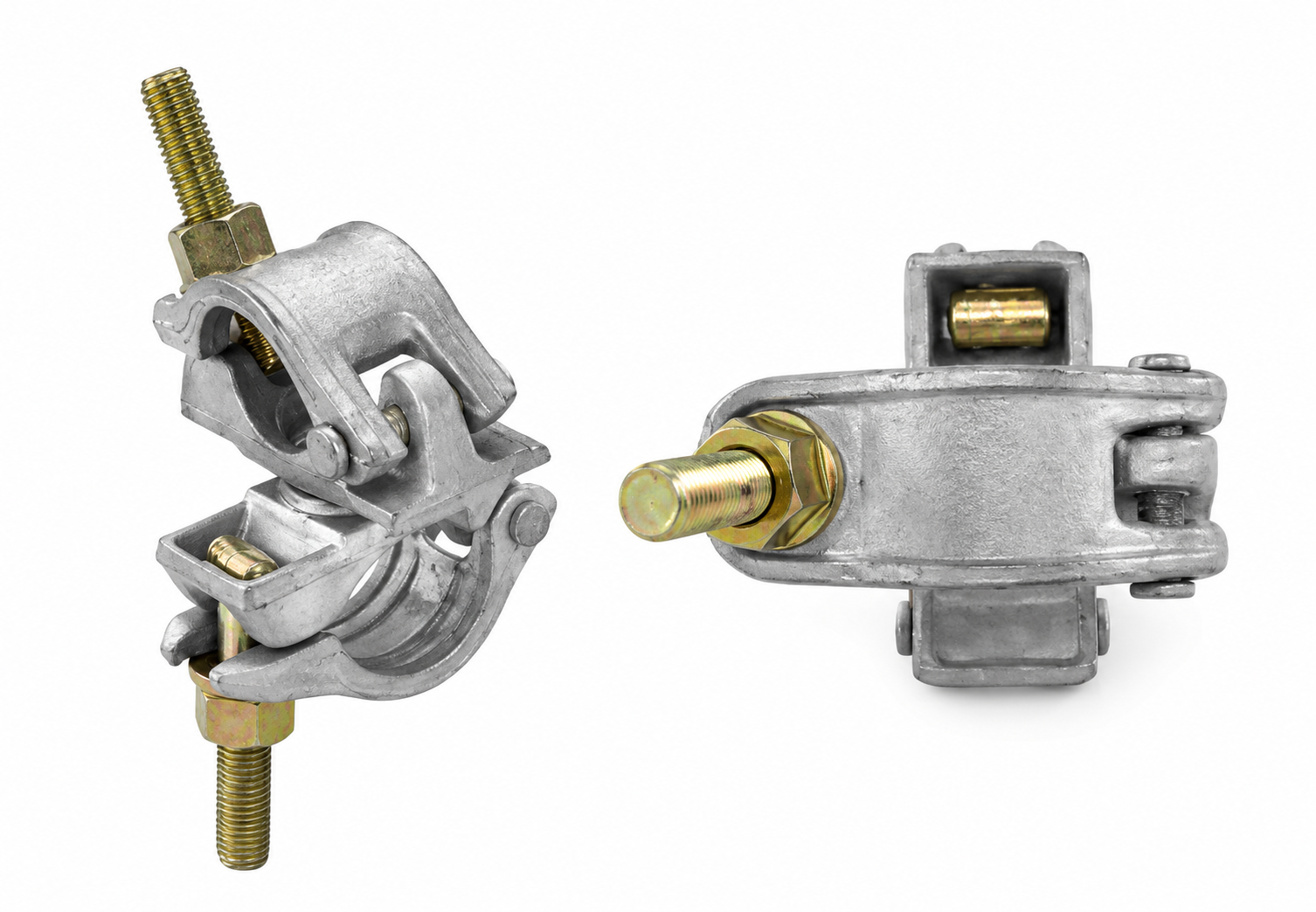

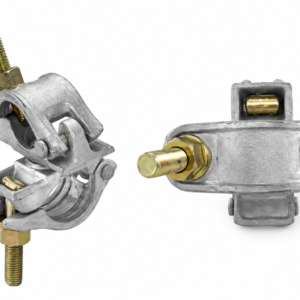

Drop Forged Swivel Coupler, EU Model
Used for connection of 2 tubes at Any angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized
Std. Packing – 20 Pcs/Bag, 1000 Pcs/Pallet

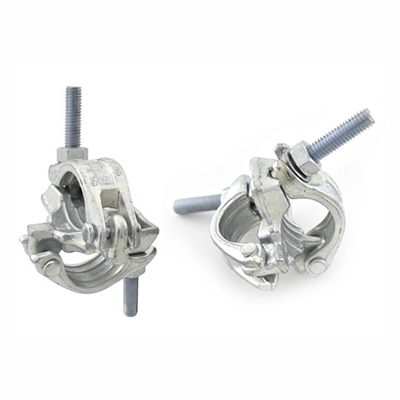

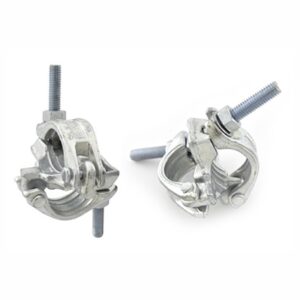

Drop Forged RAC Coupler with Ribs
Used for connection of 2 tubes (48.3) at right angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/P
Drop Forged Swivel Coupler with Ribs
Used for connection of 2 tubes (48.3) at any angle
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

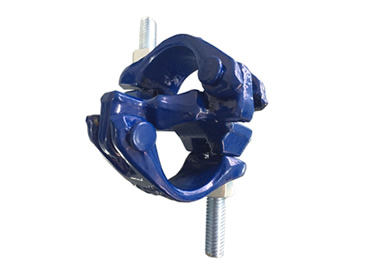

Drop Forged RAC Coupler Powder Coating
Used for connection of 2 tubes (48.3) at right angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Powder Painted
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

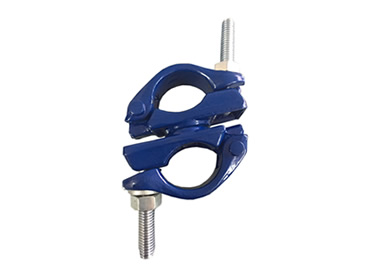

Drop Forged Swivel Coupler Powder Coating
Used for connection of 2 tubes (48.3) at any angle
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Powder Painted
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet
Drop Forged Putlog Coupler Powder Coating
Used for connection of putlogs & transoms to ledgers
Nut Size – 1/2″ BSW x 21mm AF
Half Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Powder Painted
Std. Packing – 50 Pcs/Bag, 1250 Pcs/Pallet
Drop Forged Dual Coupler
Size: 50.0 SQ x 48.3 OD
Flange Nut Size – M14
Tee Bolts: 14mm x 22 mm AF, available in Mild Steel or Boron Steel
Finish – Zinc Plated
Std. Packing – 20 Pcs/ Bag, 800 Pcs/Pallet

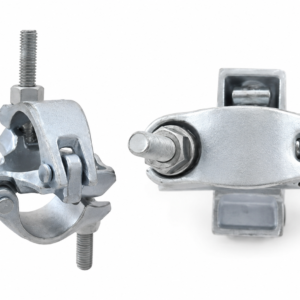

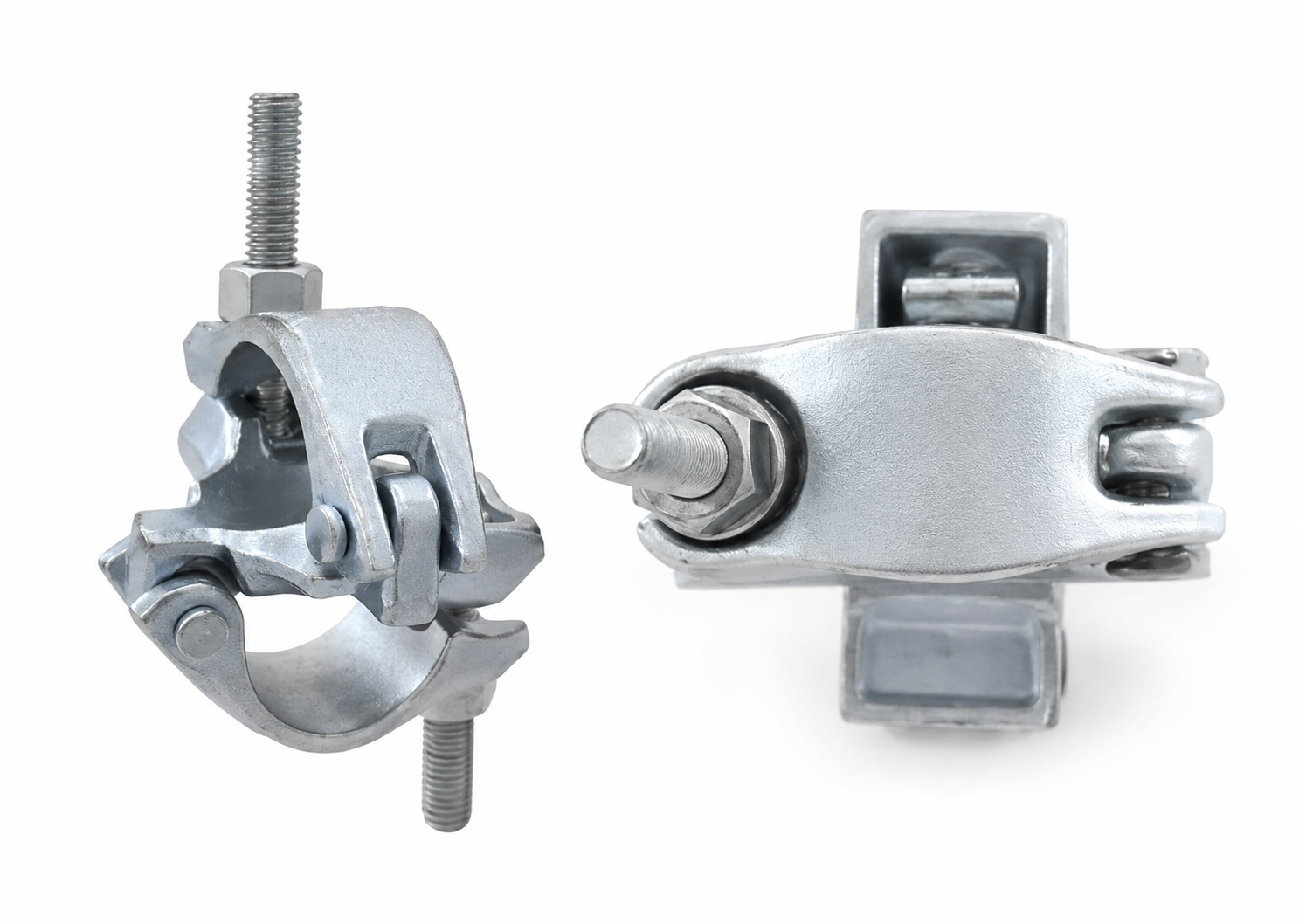

Drop Forged RAC Coupler Heavy Duty EN-7-1
Used for connection of 2 tubes (48.3) at right angles
Nut Size – 1/2″ BSW x 21mm AF
Flange Nut 22, 23 mm AF available
Tee Bolts – 1/2″ BSW Thread, available in Mild Steel or Boron Steel
For 48.3 OD Tube size
Finish – Zinc Plated
Std. Packing – 25 Pcs/Bag, 1000 Pcs/Pallet

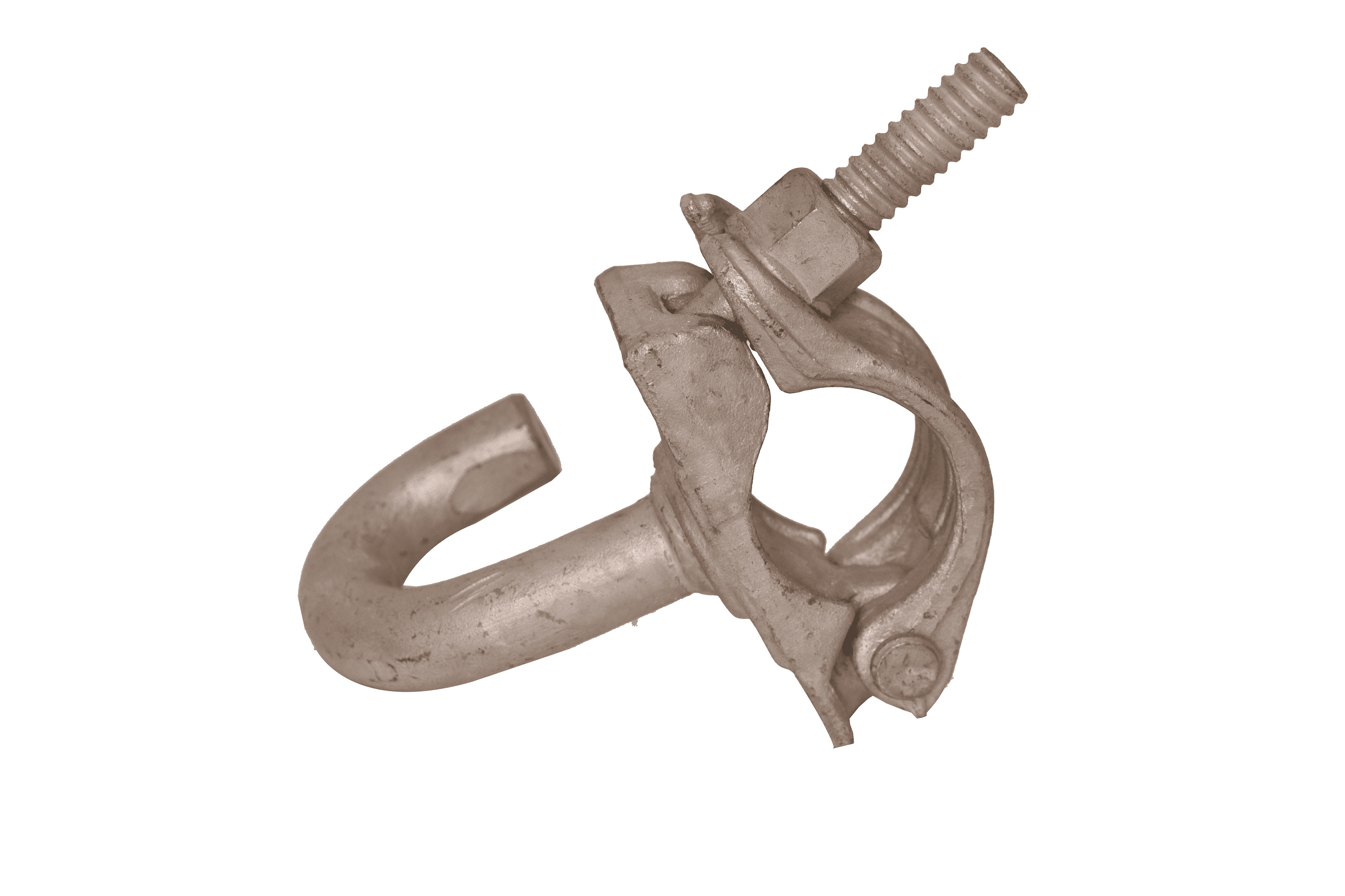

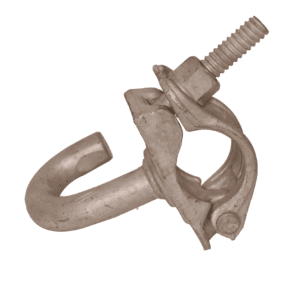

Forged Half Coupler with Welded J hook
Size – 48.3mm
Finish – Hot Dip Galvanised
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm

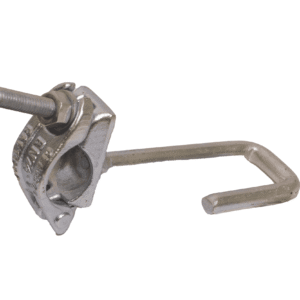

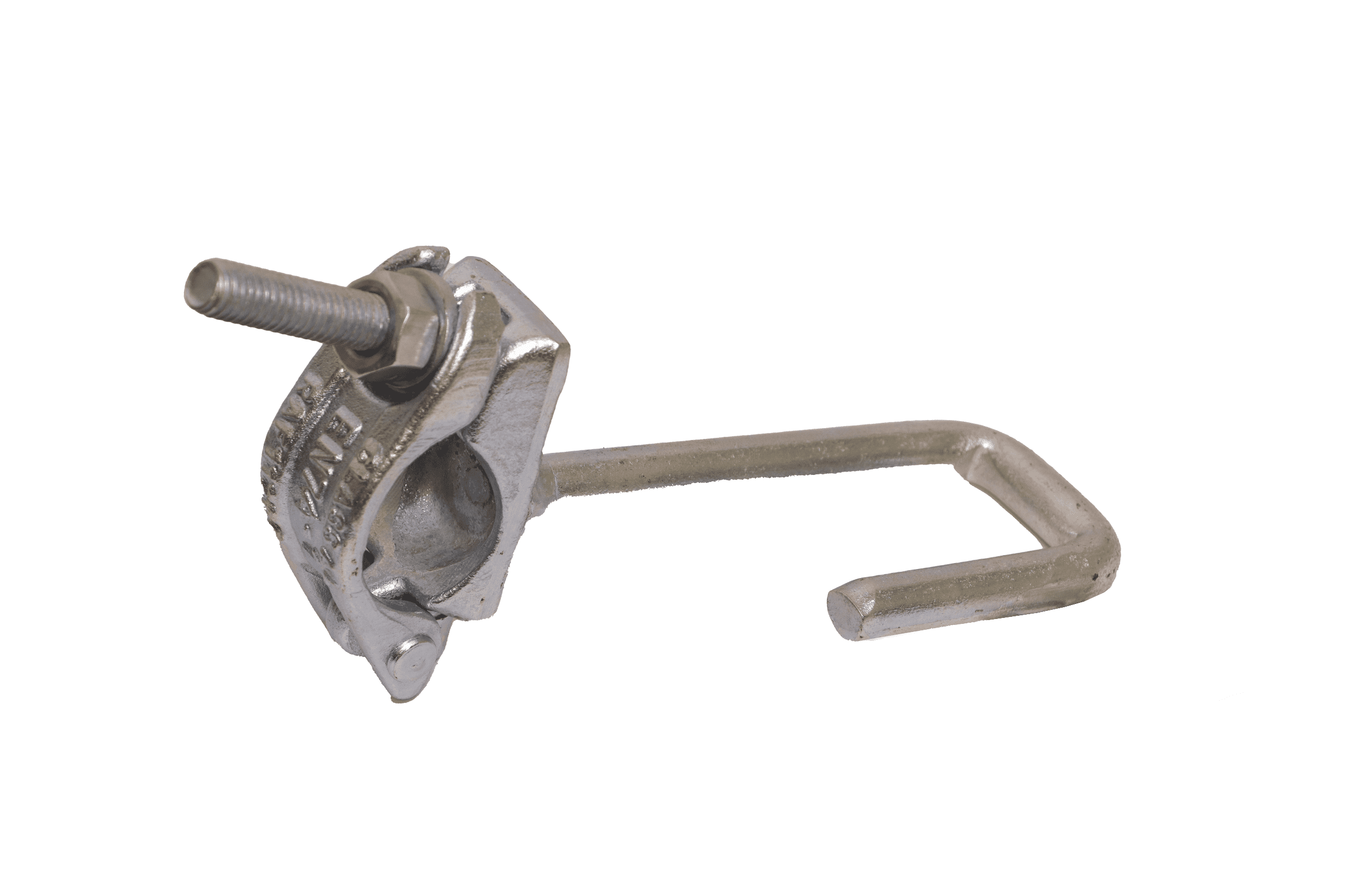

Forged Half Coupler with Ladder Hook
Size – 48.3mm
J – 140X68X70X14MM
Finish – Hot Dip Galvanised
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm

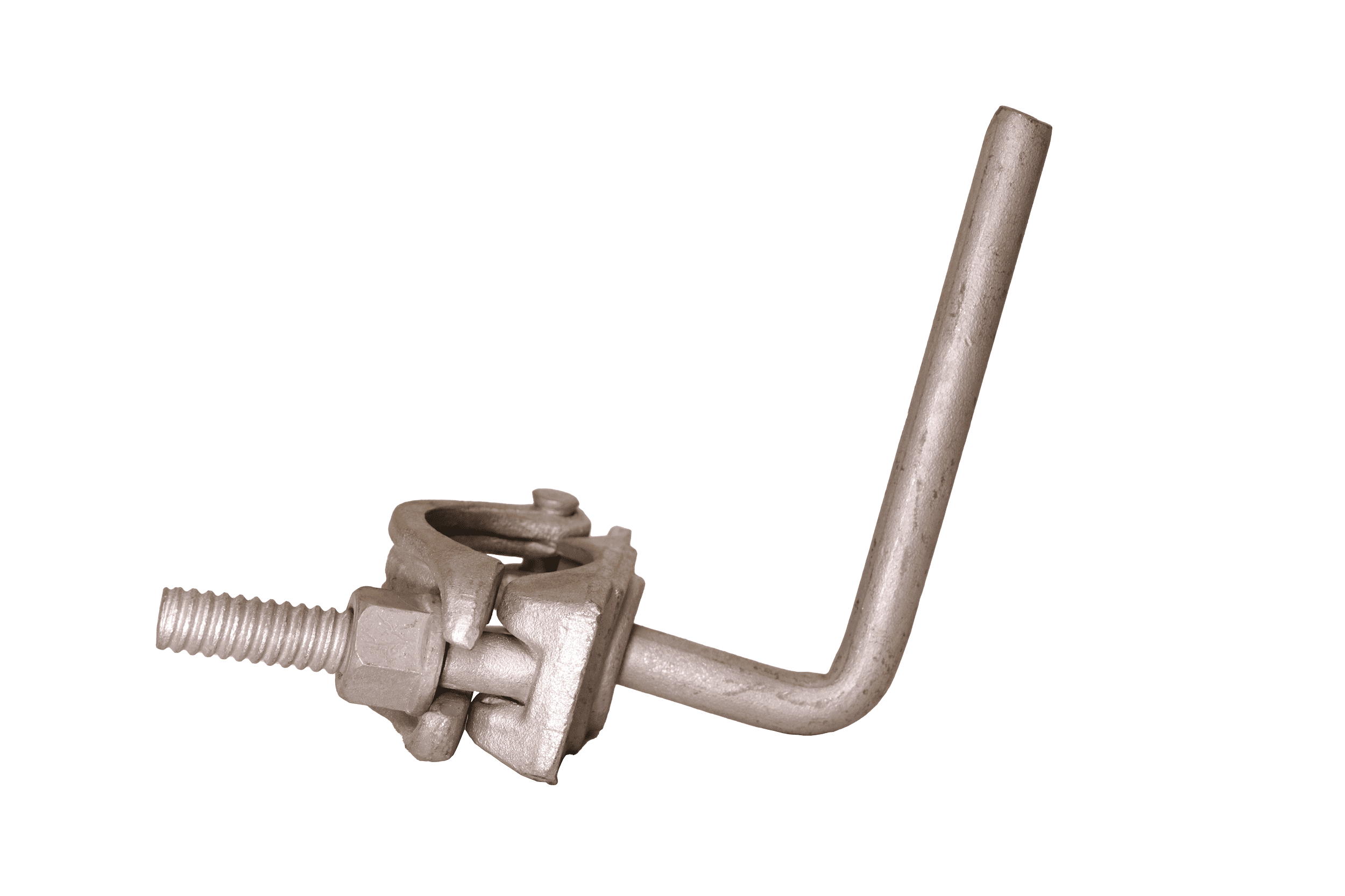

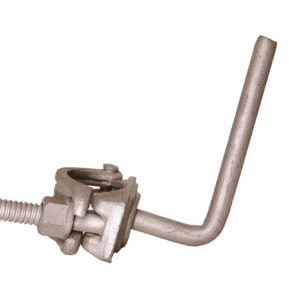

Forged Half Coupler with Welded Plank
Size – 48.3mm
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanised
Drop Forged European Half Coupler with Toggle Pin
Size – 48.3mm
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanised

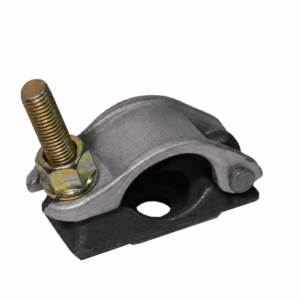

Drop Forged European Half Coupler with Black Body
Size – 48.3mm
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanised, Body Black

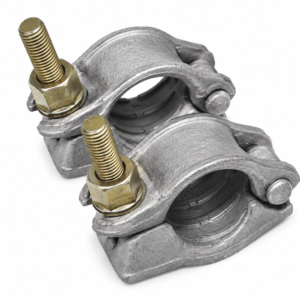

Drop Forged European Sleeve
Size – 48.3mm
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanised

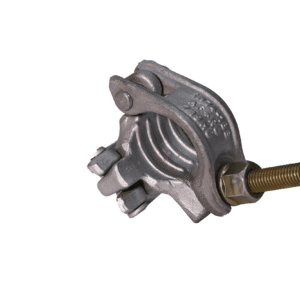

Drop Forged European Double Coupler (Light Weight)
Used for connection of 2 tube at Right Angle
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized / Zinc Plated

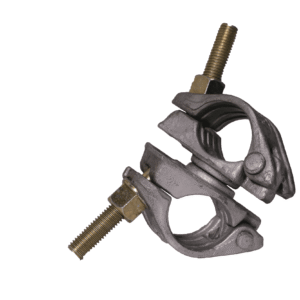

Drop Forged European Swivel Coupler (Light Weight)
Used for connection of 2 tubes at Any angles
Flange Nut 22 mm
Tee Bolts – bolt M14 x 85mm
Finish – Hot Dip Galvanized / Zinc Plated
