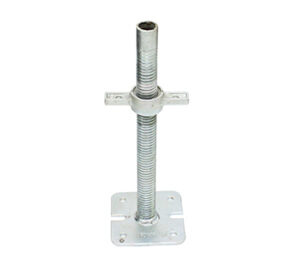

Scaffoldings

With Drop Forged Jack Nut
Sizes available
– 450 x 38 x 4 mm
– 600 x 38 x 4 mm
– 660 x 38 x 4 mm
– 760 x 38 x 4 mm
Plate – 150 x 150 x 5 mm
Finish – Zinc Plated

With Drop Forged Jack Nut
Sizes available
– 600 x 38 x 4 mm
– 660 x 38 x 4 mm
– 760 x 38 x 4 mm
U Head Size – 120 x 120 x 50 mm
Finish – Zinc Plated

With MCI Cup Nut
Sizes available
– 600 x 38 x 4 mm
– 660 x 38 x 4 mm
– 760 x 38 x 4 mm
Plate Size – 150 x 150 x 6 mm
Finish – Self Finish or Zinc Plated

With MCI Cup Nut
Size: 38X620MM
Base Plate : 200x200x8mm
Double Step Jack Nut for 48 & 60mm
Finish – Self Finish or Zinc Plated

With MCI Cup Nut
Size: 38X665 MM
U Size : 250x55x8mm Plate Size: 150x150x8mm
Double Step Jack Nut for 48 & 60mm
Finish : Electro Zinc Plate

With MCI Cup Nut
Size : 40×600 mm
Finish : Electro Zinc Plated
Packing : 220 pcs / Pallet

With MCI Cup Nut
Mild Steel
Size : 34X425 MM
Finish : Electro Zinc Plated
Packing : 500 pcs / Pallet

With MCI Cup Nut
Tube : 48.3 mm
Size : 500 mm
Welded Half Coupler / U Bracket
Finish : Electro Zinc Plated
Packing : 250 pcs / Pallet

With MCI Cup Nut
Tube : 48.3 mm
Size : 1000 mm
Welded Half Coupler
Finish : Electro Zinc Plated
Packing : 150 pcs / Pallet

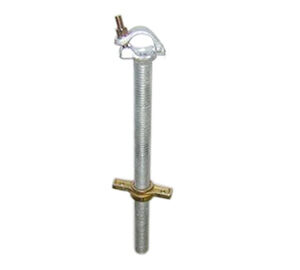

With Drop Forged Jack Nut
With Drop Forged Half Coupler welded on end
Sizes available
– 600 x 38 x 4 mm
– 660 x 38 x 4 mm
– 760 x 38 x 4 mm
Finish – Zinc Plated

With Drop Forged Jack Nut
With Drop Forged Half Coupler welded on end
Size : 32×3.8x330mm
Dia 32mm, Thickness 3.8mm
Jack Length 330mm
with Welded Cap
Finish – Zinc Plated

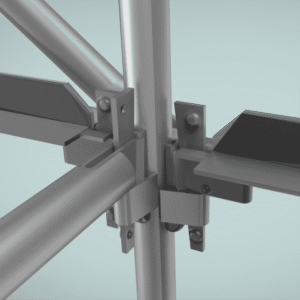

K Stage v Press is a Modular System Scaffold with Wedge Fixing for all access scaffold requirements.
The wedge Fixing of the Ledgers and Transoms gives a simple and fast means of erecting access scaffolding without loose parts
Rigid 4 way fixing giving a postive location without movement
Spigot and wedge fitting on the Standard to give guaranted vertical alignment
Quality primed & painted or hot dipped galvanised finish for maintenance free use

C-LOCK is a proven multi-purpose scaffold system which can be used for all forms of access
and support structures in the building and construction industries, shipbuilding, offshore construction
and industrial maintenance. C-Lock provides major savings in erection and dismantling times thus minimizing on-site costs. When not in use, its modular construction ensures minimal space requirements for storage.
C-Lock’s unique node point connection allows up to four horizontal members to be connected to a
vertical member in one single action – without the use of nuts and bolts or wedges. The locking device
is formed by two cups, a fixed lower cup which is welded to the vertical component at pre-located
intervals and sliding upper cup. The forged blade ends of the horizontal components are located into the lower cup, the upper cup is moved down and rotated to secure the components in place and a hammer blow then results
in a positive rigid connection.

K Stage v Press is a Modular System Scaffold with Wedge Fixing for all access scaffold requirements.
The wedge Fixing of the Ledgers and Transoms gives a simple and fast means of erecting access scaffolding without loose parts
Rigid 4 way fixing giving a postive location without movement
Spigot and wedge fitting on the Standard to give guaranted vertical alignment
Quality primed & painted or hot dipped galvanised finish for maintenance free use

• BS Props fully confirm to the requirements of BS 4074 : 1982 and have been tested in accordance with BS 5507 Part 3 : 1982.
• BS Props are manufactured from high quality material with a powder coated painted finish for long life and are highly resistant to site wear and tear.
• BS Prop can be used on all types of building construction or for any type of use where an adjustable load bearing member is required.
• The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustment.The cast collar located below the pin gives fine adjustment for levelling or striking.
• The rolled thread ensures no loss of material or strength at this point.

SEQUARE 820MM
FINISH- ZINC PLATED / HDG

ROUND 798MM
FINISH- ZINC PLATED / HDG

240X150X5MM
220X135X5.5MM
FINISH – ZINC PLATED/HDG

215X130X5MM
FINISH – ZINC PLATED/HDG

Ready Lock Sizes – 3, 4 & 5 Boards
Finish – Electro Zinc / HDG

with Forged Jack Nut
38×3.6x500mm
Finish – HDG/Painted

with Forged Jack Nut
38×3.6x330mm
38×3.6x500mm
38×3.6x700mm
38×3.6x1000mm
Finish – Hot Dip Galvanised / Painted / Zinc Plated

38X4X750MM
38X4X500MM
PLATE – 230X145MM
Finish – Hot Dip Galvanised / Zinc Plated

3418.8 x 1810mm
Finish – Pre Galvanised
